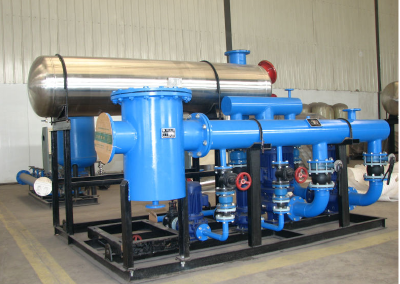

high quality vortex hot film heat exchanger

high quality vortex hot film heat exchanger

  • Min.Order Quantity: 1 Unit
  • Supply Ability: 100 per Month
  • Port: HONGKONG
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Unit/Units
Verified Supplier Pulilong pressure vessels
| Factory
Experience:1997-06-19
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  1000
  • Place of Origin:  CHINA
  • Brand Name:  pulilong
  • Model Number:  WMH-QS-159-1.5 70
  • Weight: 1000.000 kg

specifications:Changeable:according to your request

parameters:diameter:1800mm-2200mm capability:6.0m³ -15m³ operate pressure:0.6-1.6Mpa heat exchange area:35m²-45m²

advantages:

item model cool medium hot medium steam pressure heat exchanger flow capacity of steam water capacity shell side pressure less
inlet temperature outlet temperature MW/
104Kcal/h
°C °C Mpa t/h t/h Mpa
1 WMH-QS-159-1.5 70 95 0.1 0.16/13.5 0.24 5.4 <0.07
2 WMH-QS-159-3.0 70 95 0.1 0.32/27 0.45 10.8 <0.07
3 WMH-QS-219-4.8 70 95 0.1 0.5/43.2 0.72 17.3 <0.07
4 WMH-QS-273-7.2 70 95 0.1 0.76/64.8 1.08 26 <0.07
5 WMH-QS-273-9.6 70 95 0.1 1.0/86.4 1.44 34.6 <0.07
6 WMH-QS-325-12 70 95 0.1 1.26/108 1.8 43.2 <0.07
7 WMH-QS-325-15 70 95 0.1 1.58/135 2.25 44 <0.07
8 WMH-QS-325-18 70 95 0.1 1.89/162 2.7 64.8 <0.07
9 WMH-QS-377-21 70 95 0.1 2.2/189 3.15 75.6 <0.07
10 WMH-QS-377-27 70 95 0.1 2.84-243 4.05 97.2 <0.07
11 WMH-QS-400-33 70 95 0.1 3.47/297 5 120 <0.07
12 WMH-QS-500-42 70 95 0.1 4.41/378 6.3 151 <0.07

specifications:Changeable:according to your request

parameters:  diameter:159mm-----650mm,length :1.2m----1.8m

advantages:

1,save energy and time

2, this product can be reduce 70% energy than normal original equipment

3,All stainless steel, long service life, can reach more than 20 years

4,Fast heat exchange and resistance to high temperature (400 °C), high voltage (4.0 MPa), (up to 10.0 MPa)

5,Flexible design, complete specifications, and practical pertinence, save money


If any interest, please contact email:mandy01087@hotmail.com



  • Size:  1000
  • Place of Origin:  CHINA
  • Brand Name:  pulilong
  • Model Number:  WMH-QS-159-1.5 70
  • Weight: 1000.000 kg
